5MWh Sodium-Ion Grid Infrastructure Platform

ALF GridVault™ Na Series

Lithium-free sovereignty. The first purpose-built Sodium-Ion infrastructure platform engineered for institutional resilience, supply-chain security, and a sovereign energy future.

View Specifications
5 MWh
Rated Capacity
2.5 MW
Rated Power
10,000+
Cycle Life
-20°–60°C
Operating Range
15–20 yr
Service Life
Scroll

Sodium-First Infrastructure

Not a lithium adaptation.
A platform engineered sodium-first.

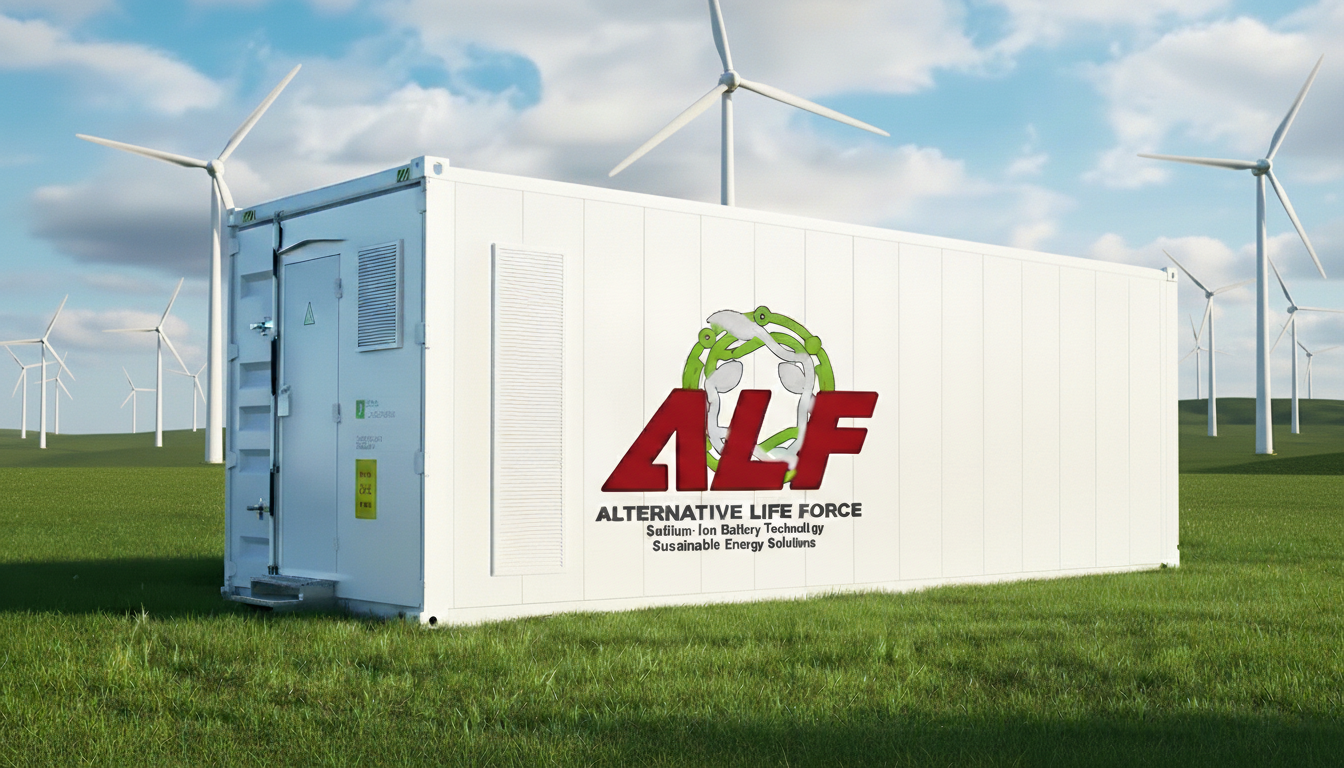

ALF5ESS containerised system deployed near critical infrastructure Chemical Integrity
01 — Chemical Sovereignty

Zero Thermal Runaway.
Total Infrastructure Confidence.

Powered by ALIFE AIR's proprietary Sodium-Ion cell architecture, the ALF GridVault™ Na Series eliminates thermal runaway risk not as a mitigation — but as an intrinsic property of sodium chemistry itself. Deploy with absolute confidence adjacent to critical infrastructure, urban grid assets, and high-value industrial environments.

  • Sodium chemistry: thermal runaway is structurally impossible at the cell level
  • Cleared for deployment adjacent to sensitive and critical infrastructure
  • Integrated automated clean-agent fire suppression as standard

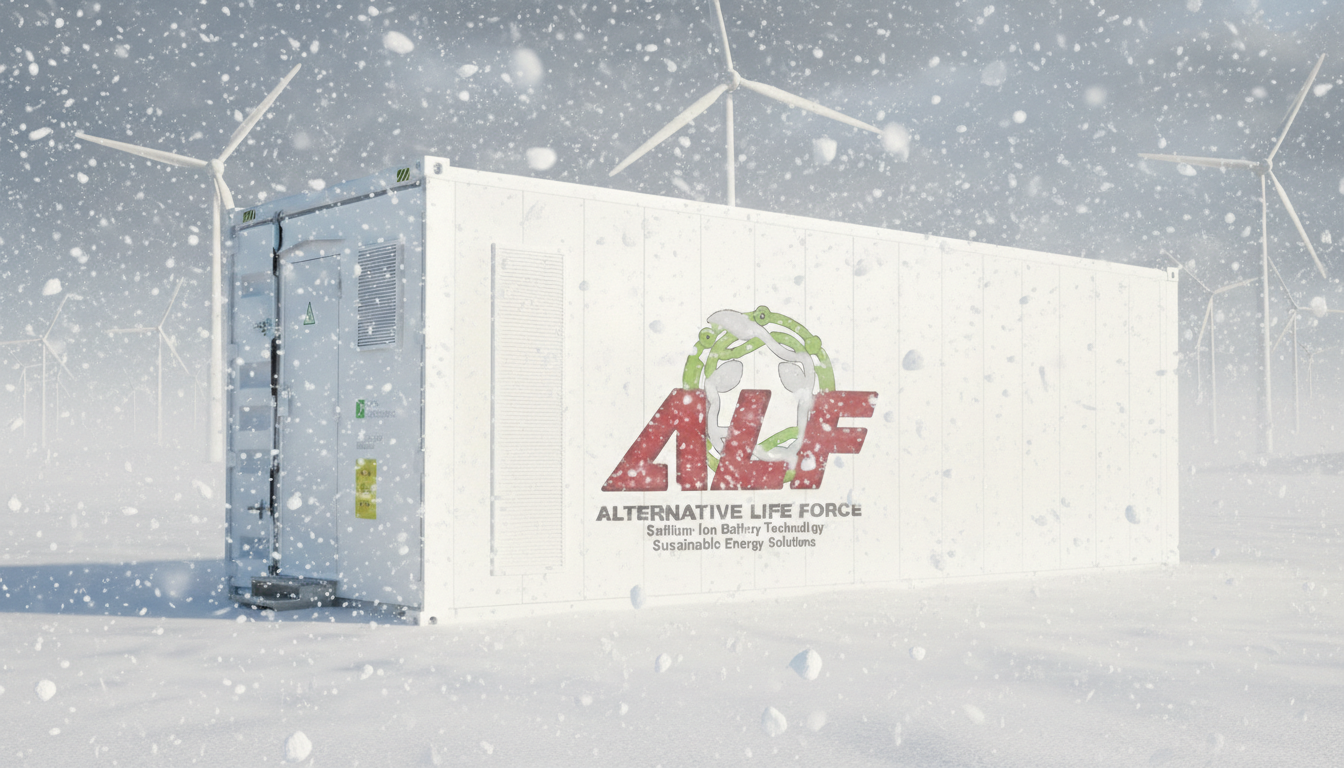

ALF5ESS operating in extreme arctic and desert environments Climate Resilient
02 — Climate-Invariant Performance

Any Climate.
Full-Rated Performance.

Engineered to perform where conventional lithium systems derate and fail. Across freezing mountain installations and scorching arid deployments, the ALF GridVault™ Na Series maintains full-rated output throughout a -20°C to 60°C operating range — supported by industrial air cooling and an IP54-rated, C3-treated enclosure built for the harshest environments on Earth.

  • -20°C to 60°C operational range — no derating, no thermal degradation
  • IP54-rated enclosure with full C3 industrial anti-corrosion treatment
  • Standard industrial air cooling — high-performance liquid cooling available
Large-scale solar farm integrated with ALF5ESS grid energy storage Lithium-Free Sovereignty
03 — Supply-Chain Sovereignty

No Lithium.
No Exposure.

The ALF GridVault™ Na Series carries zero exposure to lithium, cobalt, or nickel — the three commodities driving instability across the conventional storage supply chain. Built on earth-abundant sodium, the platform delivers 10,000+ cycles across 15–20 years of daily operation with a stable, predictable cost structure engineered for institutional financial planning and infrastructure-grade procurement.

  • Zero exposure: no lithium, no cobalt, no nickel in the supply chain
  • Earth-abundant sodium — geopolitically neutral and globally accessible
  • Stable, predictable long-term cost architecture for institutional finance

Platform Architecture

Unified Sodium Infrastructure Platform

Every element of the ALF GridVault™ Na Series is purpose-engineered to function as one sovereign, intelligent sodium infrastructure platform.

Sodium-Ion Power Core

Proprietary Sodium-Ion battery modules built on advanced Cell-to-Pack (CTP) architecture, delivering maximum volumetric energy density without lithium supply chain exposure.

AI-Enabled BMS

Next-generation Battery Management System providing precision cell-level monitoring, predictive State of Health diagnostics, and autonomous performance optimisation across all operating conditions.

Thermal Management

Industrial-grade air cooling as standard. High-performance liquid cooling integration available for extreme duty-cycle and high-ambient-temperature environments.

Integrated PCS

Integrated 2.5MW Power Conversion System engineered for seamless grid interaction — supporting AC coupling, frequency regulation, and full ancillary grid services capability.

Safety Systems

Automated clean-agent fire suppression with multi-level fault detection, redundant isolation protocols, and continuous operational monitoring for institutional-grade security.

Rugged Enclosure

Standard 40ft High Cube container, IP54 rated with full C3 anti-corrosion treatment — engineered for accelerated, plug-and-play site deployment across any global environment.

Engineering Data

Technical
Specifications

Complete engineering parameters for the ALF GridVault™ Na Series — ALF5ESS-5MWh-2.5MW-2h containerised Sodium-Ion infrastructure platform.

Product Model ALF5ESS-5MWh-2.5MW-2h
Battery Chemistry ALIFE AIR Proprietary Sodium-Ion
Rated Capacity 5 MWh @ 25℃, 0.5P
Rated Power 2.5 MW
Voltage Range 1,000 – 1,440 V DC
Cycle Life >10,000 cycles @ 70% SOH
Operating Temp. -20℃ to 60℃
Cooling Method Industrial Air Cooling (Liquid Optional)
Protection Rating IP54
Enclosure 13,708 × 2,430 × 2,950 mm — Standard 40ft High Cube
Communication Ethernet / Modbus / CAN
Grid Interface 360 – 440 V AC

Deployment Scenarios

Strategic Infrastructure Deployments

The ALF GridVault™ Na Series is purpose-architected for demanding institutional, utility-scale, and strategic energy infrastructure deployments worldwide.

Renewable Integration

Solar and wind firm power delivery — eliminating intermittency and unlocking true dispatch capability for utility-grade renewable infrastructure projects.

Peak Load Shifting

Industrial and commercial demand architecture, systematically reducing peak tariffs and grid stress during high-demand windows with precision load management.

Grid Stabilisation

Frequency regulation, voltage support, and full ancillary services — delivering the grid-level reliability that system operators and infrastructure authorities demand.

Microgrid Power

Standalone or hybrid microgrid backbone for remote communities, strategic mining operations, and island grid sovereignty — where infrastructure independence is mission-critical.

Industrial Backup

Mission-critical energy continuity for data centres, advanced manufacturing facilities, and process industries where operational resilience is non-negotiable.

EV Fleet Charging

High-power, grid-buffered charging infrastructure for commercial, logistics, and public EV fleet operators — without lithium-compound supply chain exposure.

Institutional & Commercial Enquiries

Commission the Platform
That Outlasts Lithium

Discover how the ALF GridVault™ Na Series delivers a sovereign, lithium-free infrastructure platform engineered for institutional-grade energy projects at every scale and every climate.
